Available color/s
Brown, Carbon Black
Battery
36V 10Ah
Top Speed
25km/h
Warranty
1 Year
ADO Air Carbon Electric Bicycle
specifications
| Weight | 15.9kg |
| Range | 100km |
| Top Speed | 25km/h |
| Motor Power | 250W |
| Battery Specs | 36V 10Ah |
| Charging Time | 4-6 Hours |
| Tyre Size (Front) | 20 inch |
| Tyre Size (Rear) | 20 inch |
| Dimensions (Folded) | 83.8 × 43 × 66 cm |
| Dimensions (Unfolded) | 148 × 50 × 113 cm |
| Max Load | 120kg |
| Warranty | 1 Year |
ADO Air Carbon Motor & Drive System
The ADO Air Carbon electric bicycle is powered by a 36V 250W BAFANG brushless rear-hub motor that produces up to 35 Nm of torque. A dual-sided torque sensor measures the rider’s pedalling pressure and adjusts the electric assistance proportionately, creating smoother starts and more natural acceleration than a basic cadence-sensor system. Its single-speed carbon belt drive provides quiet and low-maintenance power transfer without conventional derailleur gears, oily chains or frequent lubrication. The motor supports an assisted top speed of up to 25 km/h and a stated maximum climbing angle of approximately 20 degrees under suitable riding conditions.
ADO Air Carbon Battery & Range
The ADO Air Carbon uses a removable 36V 9.6Ah lithium battery with approximately 345.6Wh of nominal energy capacity. ADO advertises a maximum pedal-assisted range of up to 100 km under favourable test conditions. The portable battery can be removed and charged separately, allowing riders to recharge it indoors without moving the entire bicycle near a power outlet. A full charge takes approximately four to six hours. Actual range will vary according to rider weight, assistance level, speed, hills, tyre pressure, weather and frequency of stopping.
ADO Air Carbon Frame & Build

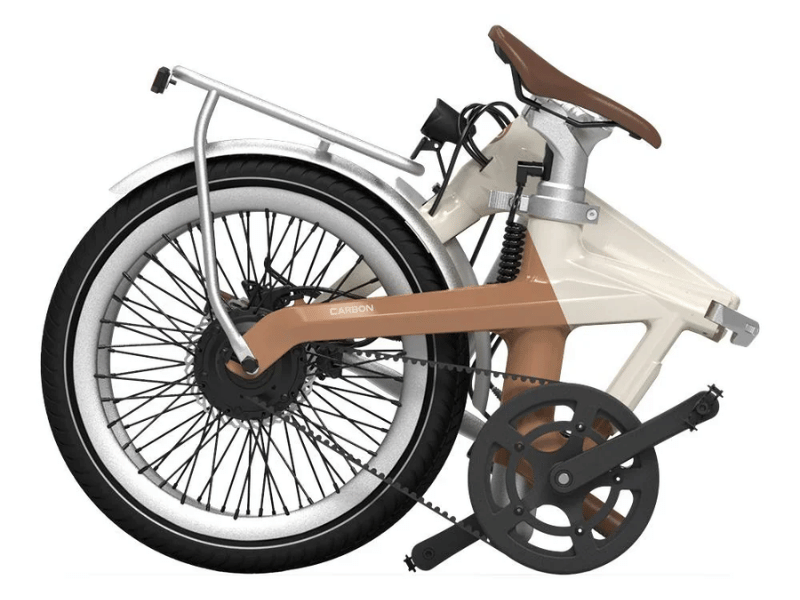

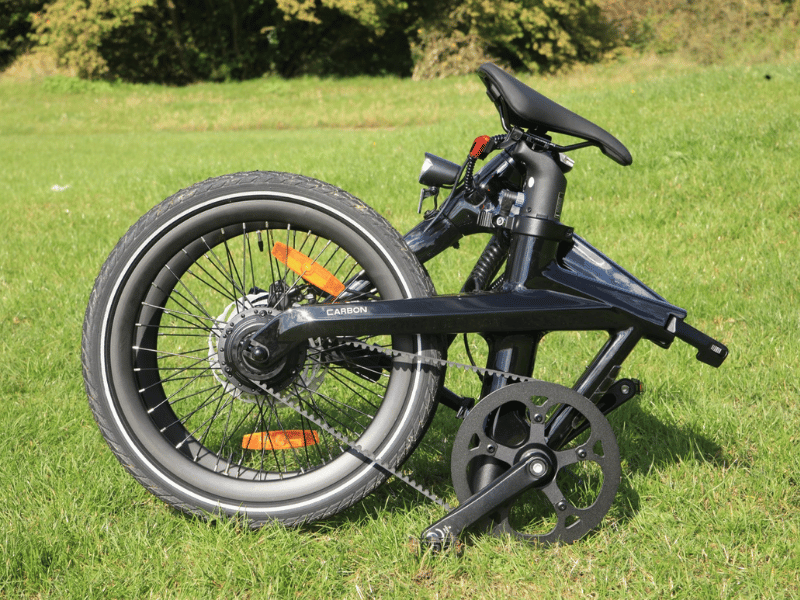

The ADO Air Carbon features a carbon-fibre folding frame and carbon front fork designed to combine structural strength with easier portability. It weighs approximately 15.9 kg with the battery installed and accessories excluded, while supporting a maximum combined rider and cargo load of 120 kg. Both wheels use 20 × 1.75-inch pneumatic tyres, and front and rear hydraulic disc brakes provide responsive stopping control. The bicycle measures approximately 148 × 50 × 113 cm when unfolded and folds down to approximately 83.8 × 43 × 66 cm for more convenient urban storage.
ADO Air Carbon Weather Rating
The ADO Air Carbon has an IPX5 water-resistance rating, while its 2.4-inch IPS colour display is rated IPX7. The main bicycle can tolerate everyday splashes and moderate exposure to rain, but it should not be treated as completely waterproof. Riders should avoid floodwater, deep puddles, pressure washing and prolonged exposure to severe rain. The battery contacts, charging port and charger must be completely dry before the bicycle is connected for charging.
ADO Air Carbon Special Highlight
The defining highlight of the ADO Air Carbon is its combination of lightweight carbon construction, compact folding and connected security technology. The carbon-fibre frame and fork make it easier to carry than many conventional folding ebikes, while the torque-sensing BAFANG motor and carbon belt drive provide smooth, clean and low-maintenance urban assistance. GPS tracking, movement detection, alert-zone notifications, hydraulic disc brakes, integrated lighting and a colour display complete a premium folding electric bicycle designed for connected city commuting in Malaysia.
ADO Air Carbon Electric Bicycle
Parts and Accessories
Electric Bicycle Repair
EkoLife is your go-to destination for Electric Bicycle servicing and repair, providing peace of mind for every rider. Our team of experienced, certified technicians specializes in everything from routine tune-ups and battery diagnostics to brake adjustments and motor overhauls, ensuring your Electric Bicycle runs at peak performance. We use only genuine parts and industry-leading tools, and offer flexible service packages—whether you prefer drop-off at our workshop or our convenient mobile repair vans come to you.
ADO Air Carbon Electric Bicycle
Installment Plans
Rent-To-Own (The best Electric Bicycle installment)
Enjoy up to 18-month electric scooter installment plans, same-day approval, and no credit card needed. Available for all models – fast, flexible, and hassle-free.
Advantages
Longer payment terms (up to 18 months), accessible with minimal documentation requirement.
Eligibility
Any Malaysian aged 18 or older with a valid IC is welcome to apply. All electric scooter installment applications are subject to a quick review to ensure affordability.
Application
1.Choose your ride 2.Submit your IC and info 3.Get approved on the same day 4.Start your mobility device installment and ride away. Visit our store or message us online to get started today!
from RM 90.00/mo for 18mo. *
Credit Card Installments
Enjoy 0% interest for 12 months when you get this e-mobility and/or Electric Bicycle installment using your credit card. This plan is perfect for those who want to manage their cash flow without incurring extra costs. The easiest Electric Bicycle installment plan
Advantages
No interest charges, no paperwork, no approval required.
Eligibility
Available to all customers holding credit cards with limits amounting to the Electric Bicycle or e-mobility unit price.
Application
Not required
Buy Now, Pay Later
Partnered with Grab Installment and Atome, our Buy Now, Pay Later plans allow you to take home an Electric Bicycle today and pay in small, manageable installments over 3 - 12 months tenure. The BNPL Electric Bicycle installment plan is extremely manageable for those riders who are already active users of Grab Installment or Atome Installment
Advantages
Deferred payments, no upfront cost just split the payment, easy on your wallet.
Eligibility
Requires a valid ID and the respective app account (New accounts might need to wait up to 90 days to be activated)
Application
Via Atome/Grab app; approval based on their app
Frequently Ask Questions about ADO Air Carbon Electric Bicycle
The ADO Air Carbon is designed for urban commuting, mixed-mode journeys, compact home storage and riders who need a lighter folding electric bicycle. Its carbon construction and folding mechanism make it easier to carry and store than many full-sized ebikes.
The ADO Air Carbon uses a removable 36V 9.6Ah lithium battery. This provides approximately 345.6Wh of nominal battery capacity and can be charged separately from the bicycle.
ADO advertises a maximum pedal-assisted range of up to 100 km. Actual riding distance may be lower depending on rider weight, assistance level, terrain, speed, tyre pressure and weather conditions.
The official ADO Air Carbon has a maximum assisted speed of up to 25 km/h. The exact achievable speed can vary according to rider weight, battery level, terrain and riding conditions.
The ADO Air Carbon uses a 250W BAFANG brushless rear-hub motor producing up to 35 Nm of torque. It works with a torque sensor to provide assistance according to the rider’s pedalling effort.
ADO’s current official net weight is approximately 15.9 kg, including the battery but excluding accessories. Adding accessories such as mudguards, a rear rack or other equipment will increase the total riding weight.
Yes. The frame folds to approximately 83.8 × 43 × 66 cm, making the bicycle easier to store in apartments, offices and suitable car boots. ADO describes the folding process as taking approximately 15 seconds once the rider is familiar with it.
The ADO Air Carbon uses 20 × 1.75-inch pneumatic tyres on both the front and rear wheels. The compact wheel size supports responsive urban handling and helps keep the bicycle’s folded dimensions manageable.
The ADO Air Carbon uses a single-speed carbon belt drive and does not have a conventional multi-speed derailleur. Riders adjust the level of electric support through the pedal-assist system rather than changing mechanical gears.
The bicycle has an IPX5 water-resistance rating and can tolerate everyday splashes and moderate rain. The display is separately rated IPX7. Riders should still avoid flooding, submersion and pressure washing, and all charging components must be dry before use.
