Available color/s
Black , Blue, Gold, Green, Red, Silver
Battery
48V 14Ah
Top Speed
25km/h
Warranty
None

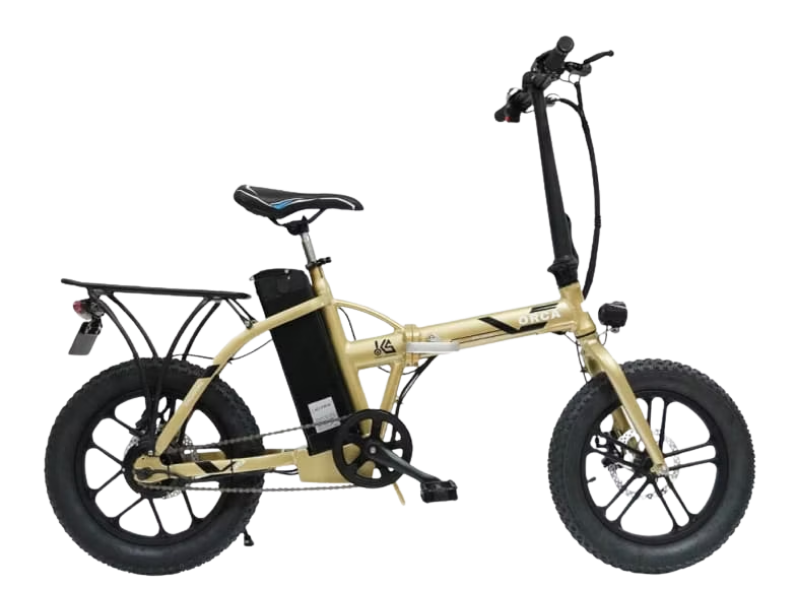

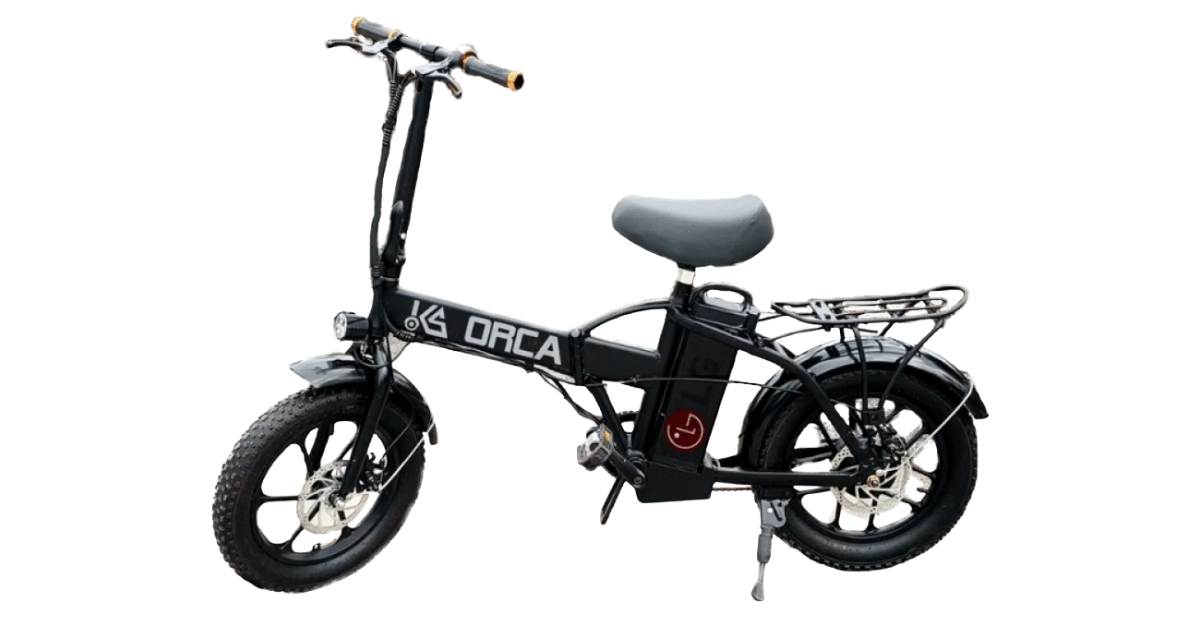

Kernel ORCA Ebike with External Battery
specifications
| Weight | 19.5kg |
| Range | 90km |
| Top Speed | 25km/h |
| Motor Power | 250W |
| Battery Specs | 48V 14Ah |
| Charging Time | 7-8 Hours |
| Tyre Size (Front) | 16 inch |
| Tyre Size (Rear) | 16 inch |
| Dimensions (Folded) | 140 × 56 × 106 cm |
| Dimensions (Unfolded) | 140 × 56 × 106 cm |
| Max Load | 120kg |
| Warranty | None |
Kernel ORCA Motor & Drive System
The Kernel ORCA ebike is powered by a 48V 250W brushless geared motor designed for urban commuting and longer pedal-assisted journeys. The 48V electrical system supplies the motor from either of the removable 14Ah batteries, while electric assistance is limited to a maximum speed of approximately 25 km/h. Front and rear disc brakes provide stopping control, and the handlebar display communicates essential information such as speed, assistance level, battery status and distance travelled.

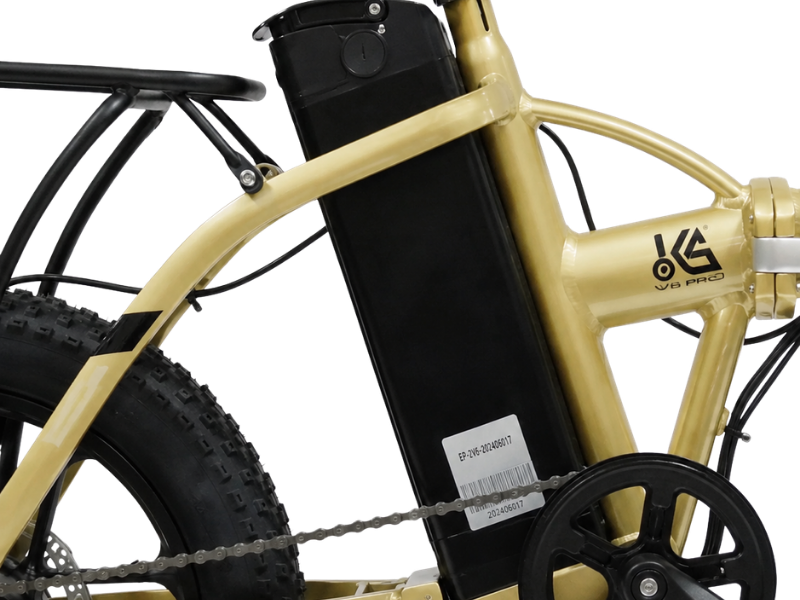

Kernel ORCA Battery & Range
The Kernel ORCA uses a removable 48V 14Ah lithium-ion battery, providing approximately 672Wh of energy capacity per battery. The external-battery package includes a second matching battery, giving riders 28Ah or approximately 1,344Wh of total carried capacity.

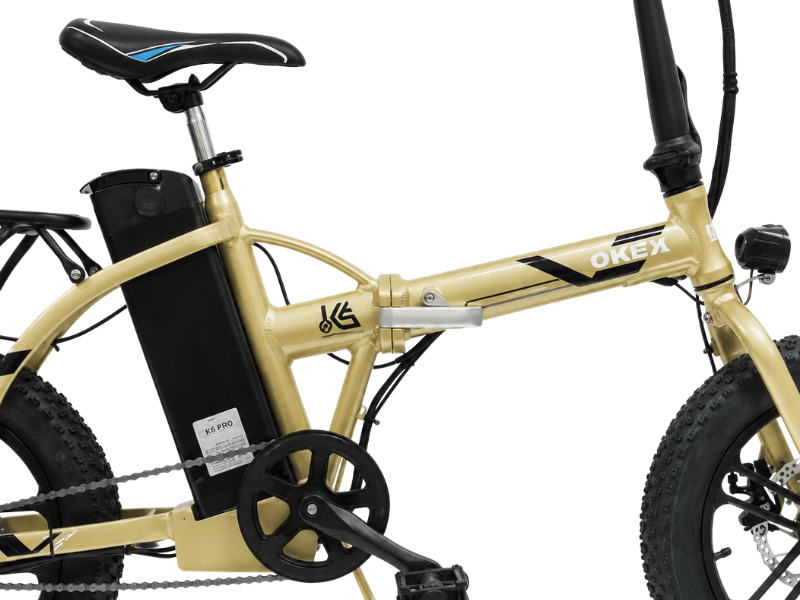

Kernel ORCA Frame & Build
The Kernel ORCA features a folding 6061 aluminium-alloy frame weighing approximately 19.5 kg. It uses matching 16 × 3-inch pneumatic tyres fitted to sports-style rims, together with front and rear disc brakes, integrated lighting and a rear cargo rack rated for approximately 15 kg.
Kernel ORCA Weather Rating
No formal whole-bicycle IP water- or dust-resistance rating is publicly documented for the Kernel ORCA. It should therefore be described as suitable for normal urban use rather than waterproof.
Riders should avoid floodwater, deep puddles, pressure washing and prolonged exposure to heavy rain. The removable batteries, electrical contacts and charging connections must be completely dry before charging or installation.
Kernel ORCA Special Highlight
The main highlight of the Kernel ORCA is its combination of dual removable battery capacity, compact folding and stable fat-tyre handling. The external-battery package allows riders to carry a second 48V 14Ah battery for longer journeys, while the 16 × 3-inch tyres provide additional grip and cushioning.
Kernel ORCA Ebike with External Battery
Parts and Accessories
Electric Bicycle Repair
EkoLife is your go-to destination for Electric Bicycle servicing and repair, providing peace of mind for every rider. Our team of experienced, certified technicians specializes in everything from routine tune-ups and battery diagnostics to brake adjustments and motor overhauls, ensuring your Electric Bicycle runs at peak performance. We use only genuine parts and industry-leading tools, and offer flexible service packages—whether you prefer drop-off at our workshop or our convenient mobile repair vans come to you.
Kernel ORCA Ebike with External Battery
Installment Plans
Rent-To-Own (The best Electric Bicycle installment)
Enjoy up to 18-month electric scooter installment plans, same-day approval, and no credit card needed. Available for all models – fast, flexible, and hassle-free.
Advantages
Longer payment terms (up to 18 months), accessible with minimal documentation requirement.
Eligibility
Any Malaysian aged 18 or older with a valid IC is welcome to apply. All electric scooter installment applications are subject to a quick review to ensure affordability.
Application
1.Choose your ride 2.Submit your IC and info 3.Get approved on the same day 4.Start your mobility device installment and ride away. Visit our store or message us online to get started today!
from RM 90.00/mo for 18mo. *
Credit Card Installments
Enjoy 0% interest for 12 months when you get this e-mobility and/or Electric Bicycle installment using your credit card. This plan is perfect for those who want to manage their cash flow without incurring extra costs. The easiest Electric Bicycle installment plan
Advantages
No interest charges, no paperwork, no approval required.
Eligibility
Available to all customers holding credit cards with limits amounting to the Electric Bicycle or e-mobility unit price.
Application
Not required
Buy Now, Pay Later
Partnered with Grab Installment and Atome, our Buy Now, Pay Later plans allow you to take home an Electric Bicycle today and pay in small, manageable installments over 3 - 12 months tenure. The BNPL Electric Bicycle installment plan is extremely manageable for those riders who are already active users of Grab Installment or Atome Installment
Advantages
Deferred payments, no upfront cost just split the payment, easy on your wallet.
Eligibility
Requires a valid ID and the respective app account (New accounts might need to wait up to 90 days to be activated)
Application
Via Atome/Grab app; approval based on their app
Frequently Ask Questions about Kernel ORCA Ebike with External Battery
The Kernel ORCA is designed for urban commuting, delivery work and longer pedal-assisted journeys. Its fat tyres, rear rack, folding frame and removable spare battery make it suitable for riders who prioritise range, stability and utility.
The Kernel ORCA uses a removable 48V 14Ah lithium-ion battery with approximately 672Wh of energy capacity. The external-battery package includes a second matching 48V 14Ah battery.
The advertised pedal-assisted range is up to approximately 90 km from one fully charged battery. Actual range may be lower depending on rider weight, cargo, assistance level, terrain, tyre pressure and battery condition.
Two fully charged 48V 14Ah batteries provide twice the available battery capacity. This gives a theoretical combined range of up to approximately 180 km under the same ideal conditions used for the 90 km single-battery claim. It should not be treated as a guaranteed real-world distance.
The Kernel ORCA has a maximum motor-assisted speed of up to 25 km/h. Actual riding speed may vary according to rider weight, battery charge, terrain and riding conditions.
The Kernel ORCA uses a 48V 250W brushless geared motor. Its 48V electrical system supports pedal assistance for regular urban riding and moderate gradients.

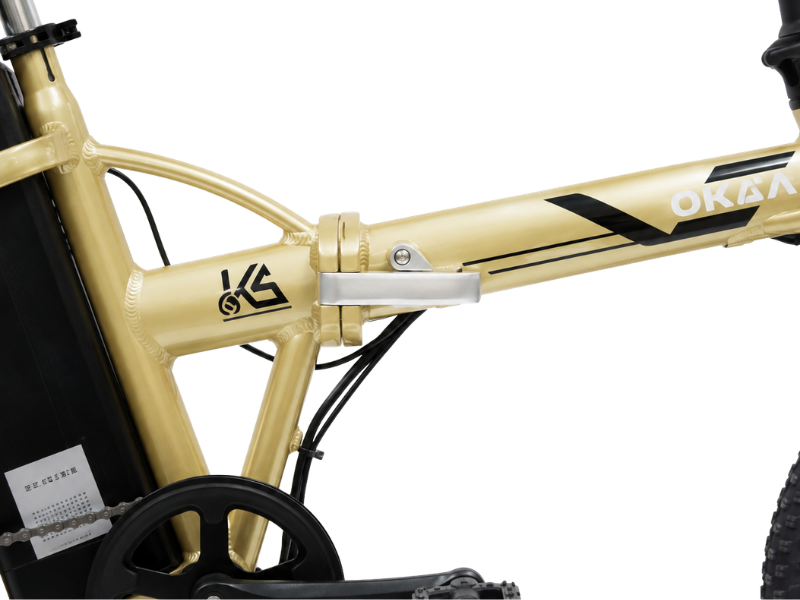

Yes. The Kernel ORCA has a folding frame designed for more compact storage. The folded bicycle measures approximately 80 cm along its compacted length, although the complete folded width and height are not officially published.

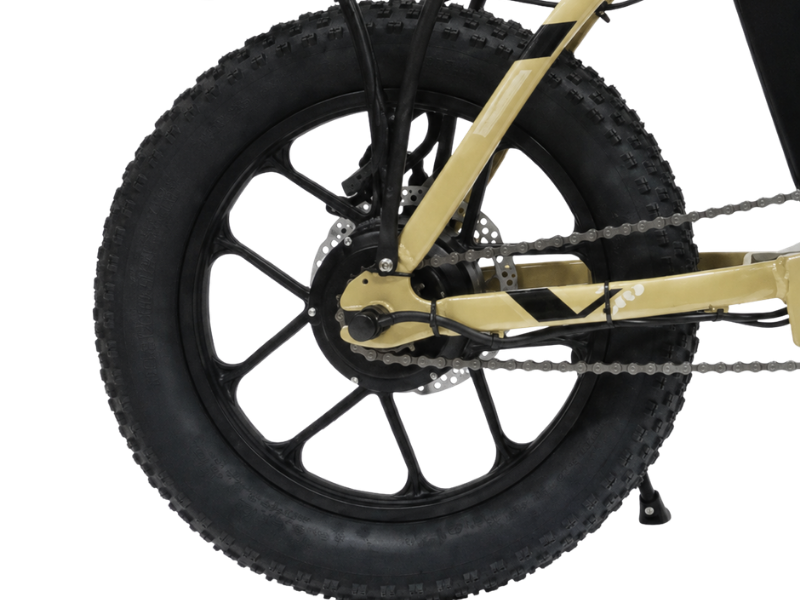

The Kernel ORCA uses 16 × 3-inch pneumatic fat tyres on both the front and rear wheels. Their wide profile supports additional grip, cushioning and stability on urban and moderately uneven surfaces.
The Kernel ORCA supports a maximum combined load of approximately 120 kg. This includes the rider, accessories and anything carried on the bicycle. The integrated rear rack is separately rated for up to approximately 15 kg.
No verified whole-bicycle IP rating is published for the Kernel ORCA. Riders should avoid heavy rain, flooding, deep puddles and pressure washing. Both removable batteries and all charging connections must be completely dry before charging.
