Available color/s
Black, Blue, White
Battery
36V 10Ah
Top Speed
30km/h
Warranty
1 Year

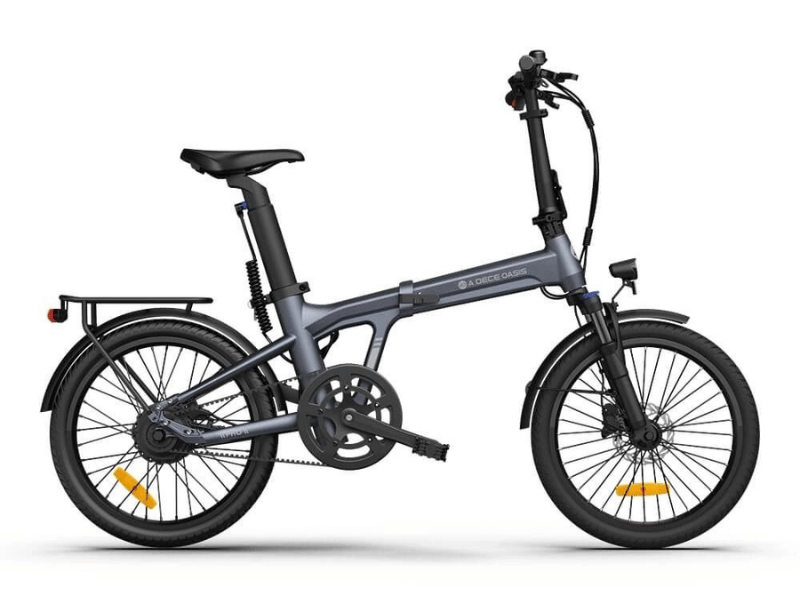

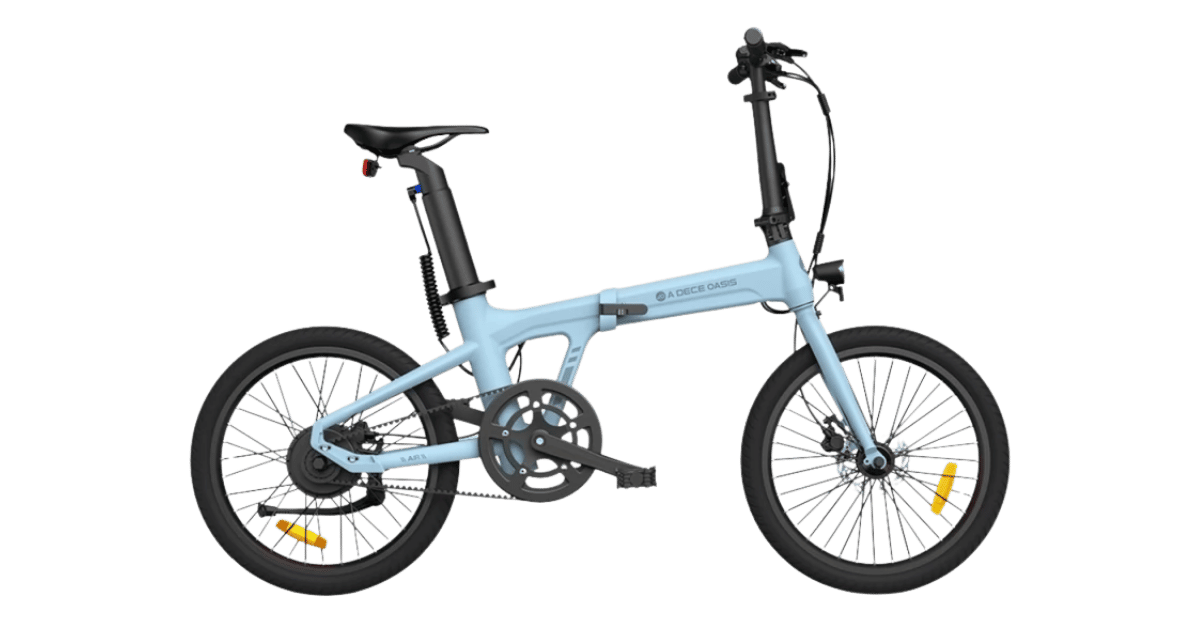

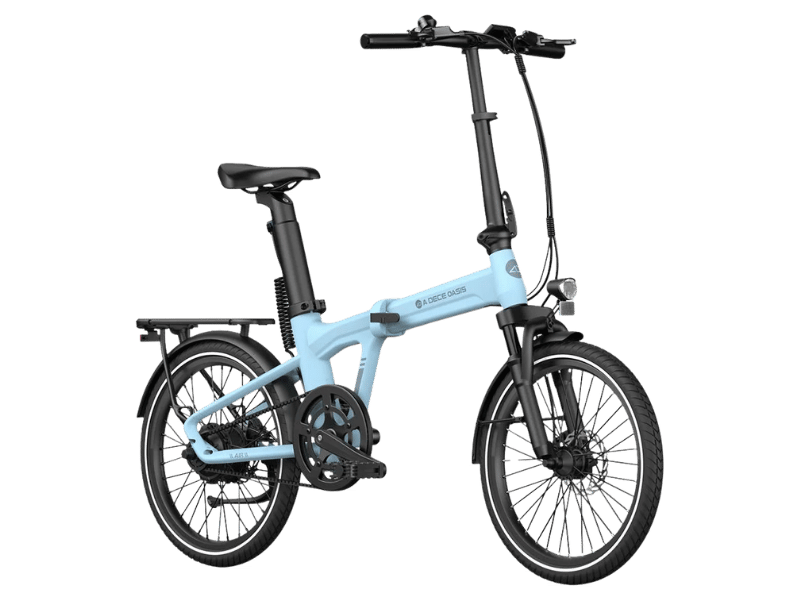

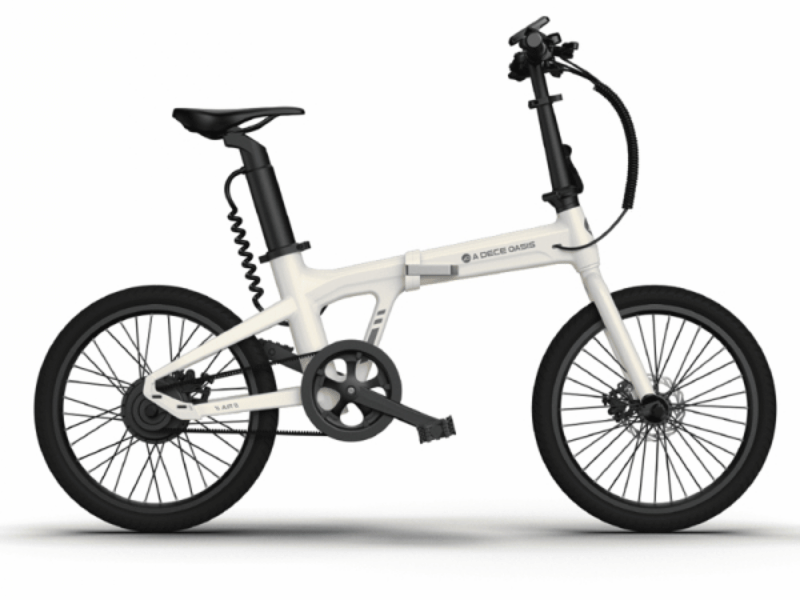

ADO A20 Air Electric Bicycle
specifications
| Weight | 16kg |
| Range | 40-100km |
| Top Speed | 30km/h |
| Motor Power | 250W |
| Battery Specs | 36V 10Ah |
| Charging Time | 4-6 Hours |
| Tyre Size (Front) | 20 inch |
| Tyre Size (Rear) | 20 inch |
| Dimensions (Folded) | 86 × 48 × 63 cm |
| Dimensions (Unfolded) | 156 × 53 × 115 cm |
| Max Load | 120kg |
| Warranty | 1 Year |
ADO A20 Air Motor & Drive System
The ADO A20 Air electric bicycle sold by EkoLife Malaysia uses a 250W geared rear-hub motor producing approximately 35 Nm of torque. The motor works with a torque sensor to provide electric assistance according to the rider’s pedalling pressure, creating smoother and more controlled support during starts and urban cruising. Its single-speed carbon belt drive eliminates conventional derailleur shifting and provides quiet, clean and low-maintenance power transfer. The Malaysian product specification lists a maximum speed of 30 km/h, although regional controller settings can differ.
ADO A20 Air Battery & Range
The ADO A20 Air uses a removable Samsung lithium battery marketed by EkoLife Malaysia as 36V 10Ah. International documentation commonly lists the nominal capacity as 36V 9.6Ah, or approximately 345.6Wh. The advertised range is up to 100 km with pedal assistance or approximately 40 km in electric operation, with a full charging time of around four to six hours. Real-world range depends on rider weight, assistance level, speed, hills, tyre pressure, weather and frequency of stopping.
ADO A20 Air Frame & Build
The ADO A20 Air features a lightweight folding aluminium frame rather than a carbon-fibre frame. It supports a maximum combined load of 120 kg and uses 20 × 1.95-inch puncture-resistant tyres on double-walled aluminium wheels. Front and rear hydraulic disc brakes provide controlled braking, while the rigid front fork keeps the bicycle simple and lightweight. When unfolded, the A20 Air measures approximately 156 × 53 × 115 cm and folds to around 86 × 48 × 63 cm for compact storage.
ADO A20 Air Weather Rating
The ADO A20 Air is listed with an IPX5 water-resistance rating, while its IPS colour display is rated IPX7. This means the bicycle can tolerate everyday splashes and moderate exposure to rain, but it should not be treated as completely waterproof. Riders should avoid floodwater, deep puddles, pressure washing and prolonged exposure to severe rain. The battery connections and charging port must be completely dry before charging.
ADO A20 Air Special Highlight
The special highlight of the ADO A20 Air is its balance of portability, low maintenance and natural riding assistance. Its folding aluminium frame makes storage easier, while the carbon belt drive removes the need for regular chain lubrication. The torque sensor delivers assistance according to pedalling effort, and the removable seat-post battery supports convenient indoor charging. Hydraulic disc brakes, an IPS colour display, ADO Smart App compatibility and folding pedals complete a practical urban ebike package for Malaysian commuters.
ADO A20 Air Electric Bicycle
Parts and Accessories
Electric Bicycle Repair
EkoLife is your go-to destination for Electric Bicycle servicing and repair, providing peace of mind for every rider. Our team of experienced, certified technicians specializes in everything from routine tune-ups and battery diagnostics to brake adjustments and motor overhauls, ensuring your Electric Bicycle runs at peak performance. We use only genuine parts and industry-leading tools, and offer flexible service packages—whether you prefer drop-off at our workshop or our convenient mobile repair vans come to you.
ADO A20 Air Electric Bicycle
Installment Plans
Rent-To-Own (The best Electric Bicycle installment)
Enjoy up to 18-month electric scooter installment plans, same-day approval, and no credit card needed. Available for all models – fast, flexible, and hassle-free.
Advantages
Longer payment terms (up to 18 months), accessible with minimal documentation requirement.
Eligibility
Any Malaysian aged 18 or older with a valid IC is welcome to apply. All electric scooter installment applications are subject to a quick review to ensure affordability.
Application
1.Choose your ride 2.Submit your IC and info 3.Get approved on the same day 4.Start your mobility device installment and ride away. Visit our store or message us online to get started today!
from RM 90.00/mo for 18mo. *
Credit Card Installments
Enjoy 0% interest for 12 months when you get this e-mobility and/or Electric Bicycle installment using your credit card. This plan is perfect for those who want to manage their cash flow without incurring extra costs. The easiest Electric Bicycle installment plan
Advantages
No interest charges, no paperwork, no approval required.
Eligibility
Available to all customers holding credit cards with limits amounting to the Electric Bicycle or e-mobility unit price.
Application
Not required
Buy Now, Pay Later
Partnered with Grab Installment and Atome, our Buy Now, Pay Later plans allow you to take home an Electric Bicycle today and pay in small, manageable installments over 3 - 12 months tenure. The BNPL Electric Bicycle installment plan is extremely manageable for those riders who are already active users of Grab Installment or Atome Installment
Advantages
Deferred payments, no upfront cost just split the payment, easy on your wallet.
Eligibility
Requires a valid ID and the respective app account (New accounts might need to wait up to 90 days to be activated)
Application
Via Atome/Grab app; approval based on their app
Frequently Ask Questions about ADO A20 Air Electric Bicycle
The ADO A20 Air is designed for city commuting, office journeys, recreational riding and riders with limited storage space. Its folding frame makes it easier to store in apartments, offices and suitable vehicle boots.
EkoLife Malaysia lists the ADO A20 Air with a removable 36V 10Ah Samsung lithium battery. International specifications commonly identify the nominal capacity as 36V 9.6Ah, which is approximately 345.6Wh.
The advertised range is up to 100 km in pedal-assist mode or approximately 40 km in electric mode. Actual range may be lower depending on rider weight, assistance level, speed, hills, tyre pressure and weather.
The structured EkoLife Malaysia specification lists a maximum speed of 30 km/h. Another section on the same product page claims 35 km/h, while the standard European version is limited to 25 km/h. The controller setting on the Malaysian stock unit should be confirmed before publication.
The EkoLife Malaysia version uses a 250W geared rear-hub motor producing approximately 35 Nm of torque. It works with a torque sensor to provide assistance according to the rider’s pedalling pressure.
The ADO A20 Air has a single-speed carbon belt drive and does not use a conventional multi-speed derailleur. Riders control the amount of electric support through the available pedal-assist levels.

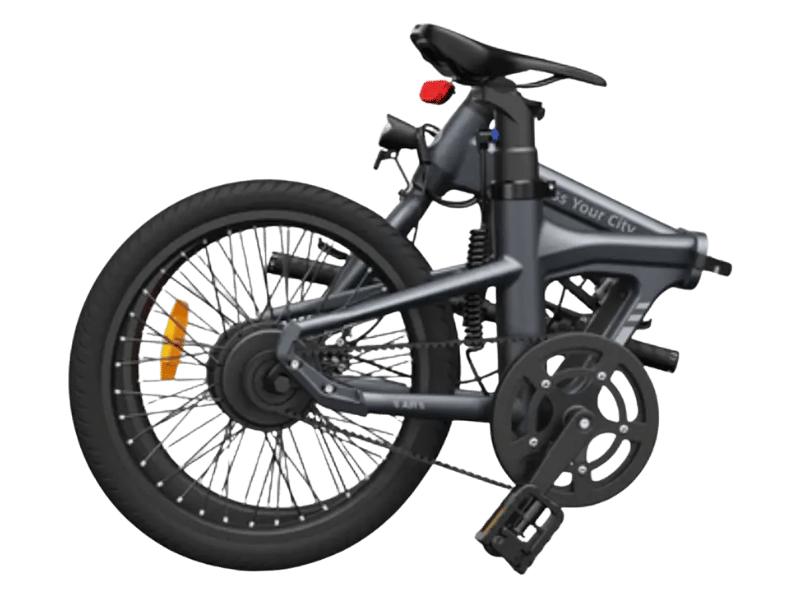

Yes. The frame, handlebar and pedals can be folded for compact storage. EkoLife Malaysia lists its folded dimensions as approximately 86 × 48 × 63 cm.
The ADO A20 Air uses 20 × 1.95-inch tyres on both the front and rear wheels. These tyres provide responsive urban handling while keeping the bicycle compact enough for folding and storage.
A complete charge takes approximately four to six hours. Charging time may vary according to the remaining battery level, battery temperature, charger condition and electrical supply.
The ADO A20 Air has an IPX5 water-resistance rating, while its IPS display is rated IPX7. It can tolerate normal splashes and moderate rain, but riders should avoid flooding, submersion and pressure washing.
